How to Choose the Right Integrated Servo Motor?
Choosing an integrated servo motor is not simply a matter of matching horsepower to a machine. The International Federation of Robotics reported 4,281,585 industrial robots operating worldwide in 2023, with 541,302 new installations that year, in World Robotics 2024. That scale reflects growing demand for reliable, accurately controlled motion. It does not mean every application needs the same motor.
An integrated servo motor typically combines a motor, drive electronics, and feedback components in one assembly. This can reduce cabinet space and wiring, but it also concentrates heat and electronics near the moving machine. The right choice depends on the actual load: required torque and speed, acceleration, duty cycle, available mounting space, and operating temperature. Check the feedback type, communication protocol, and protection rating against your controller and workplace conditions. Small details matter.
A useful selection process starts with the motion profile, not a product brochure. Estimate peak and continuous torque, then consider load inertia, cable routing, maintenance access, and how the motor will handle repeated starts and stops. Manufacturers’ torque curves and thermal limits are more useful than a headline power rating alone. Verify those figures for the intended mounting and ambient conditions.
There is no perfect shortcut. A shortlist can still overlook vibration, heat, or a difficult commissioning step. Compare documented specifications, request application support when calculations are uncertain, and test the motor under representative loads before finalizing the design.
Define the Motion Profile and Calculate RMS Torque for IEC 60034 S1/S3 Duty

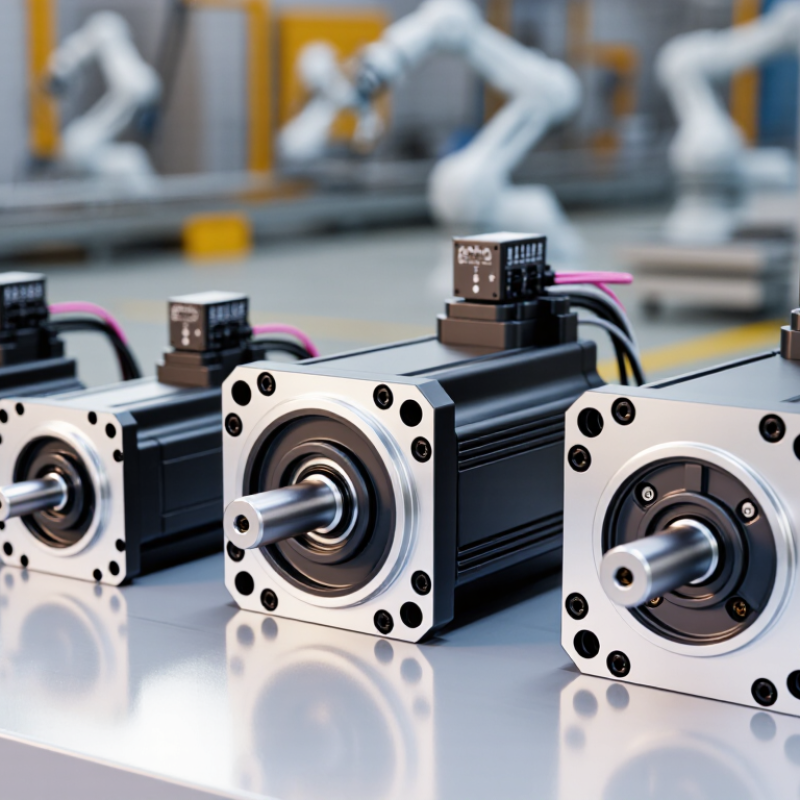

How to Choose the Right Integrated Servo Motor?
Define the Motion Profile and Calculate RMS Torque for IEC 60034 S1/S3 Duty
Start with the actual motion, not the motor’s headline torque. Map each move into acceleration, constant-speed travel, deceleration, and dwell. Record torque, speed, and duration for every segment. A short, heavy acceleration can demand high peak torque, while frequent moves may create substantial heat. Include the payload, friction, gearbox losses, and reflected inertia. Small pauses matter.
Calculate cycle RMS torque using: square root of [sum of (torque squared × segment time) divided by total cycle time]. Use consistent torque values at the motor shaft. For S1 duty, check that continuous RMS torque stays within the motor’s thermal rating until temperature stabilizes. For S3, include the operating and rest periods, then calculate the cyclic duration factor. Also verify peak torque, maximum speed, and starts per cycle; RMS alone does not confirm safe operation.
Tips: Log a real cycle if possible. Compare measured and calculated torque. Recheck the assumptions; friction often changes after installation. A first estimate may miss a brief load spike, so leave suitable margin and validate temperatures under representative conditions.
How to Choose the Right Integrated Servo Motor?
Illustrative motion profile for calculating RMS torque and evaluating IEC 60034 S1/S3 duty.
Example cycle: acceleration at 12 Nm for 2 s, constant speed at 6 Nm for 3 s, deceleration at −8 Nm for 1 s, and a 4 s dwell. The cycle RMS torque is
√[(12² × 2 + 6² × 3 + (−8)² × 1 + 0² × 4) / 10] = 6.78 Nm.
The operating portion is 60% of the 10 s cycle. For S1, compare RMS torque with the motor’s continuous rating; for S3, also confirm the permitted intermittent duty cycle and peak torque. This illustrative profile is not a motor rating.
Match Load Torque and Speed to the Motor’s Continuous and Peak Ratings
Choosing an integrated servo motor starts with the load’s actual torque, not a headline rating.
Estimate torque at normal running speed, including friction, gravity, and transmission losses. A vertical axis holding a 4-kilogram fixture still needs torque while stationary.
Static loads matter.
Compare the operating demand with the motor’s continuous torque rating. This is the torque it can deliver without overheating under specified cooling and ambient conditions. Peak torque can support brief acceleration or disturbances.
Briefly is not continuously.
Check the permitted peak duration and how often it can repeat. A fast indexing table might need 1.8 N·m for 120 milliseconds, then settle near 0.6 N·m. The peak may fit, but repeated starts can still build heat.
Speed changes the picture. Confirm the motor can provide enough torque at the required speed; available torque often falls as speed rises. Include acceleration time, reflected inertia, and the real duty cycle. I still find inertia easy to underestimate, especially with a heavy pulley. Check thermal limits and drive settings, then test the most demanding operating cycle. Leave room for warm cabinets, sticky guides, and imperfect measurements.
Record motor temperature during repeated production cycles.
Check Feedback Resolution: 17-Bit Encoders Provide 131,072 Counts per Revolution
Choosing an integrated servo motor starts with the feedback system. A 17-bit encoder provides 131,072 counts per revolution, or about 0.00275 degrees per count. That fine resolution can help a motor make small, controlled movements. It matters in tasks such as aligning a camera stage or positioning a compact pick-and-place arm. Small steps matter.
Still, resolution is not the same as accuracy. Gear backlash, shaft compliance, electrical noise, and tuning can all affect the final position. A high count value may look decisive, but it deserves a second look against the machine’s real tolerances. Check how the encoder reports position, and test the motor under the load and speed you expect. A specification sheet cannot show every vibration on your workbench.
Tips: Match feedback resolution to the smallest useful movement in your application. For a 10-millimeter lead screw, a 17-bit encoder represents roughly 0.00076 millimeters per count before mechanical effects. Treat that as a theoretical increment, not a guaranteed repeatable step. Compare measured motion across several cycles, and note any drift or overshoot. A simple test can reveal what the clean numbers miss.
Compare Drive Integration, Supply Voltage, and Industrial Communication Interfaces
How to Choose the Right Integrated Servo Motor?
Choosing an integrated servo motor starts with the machine’s actual constraints, not a catalog headline. An onboard drive can reduce cabinet wiring and save panel space, but replacement may become more involved. Check that feedback options, tuning tools, and protection features suit your maintenance team. That detail matters. A compact indexing axis may need fewer cables, while a hot enclosure needs enough thermal margin. Compare the motor’s supply voltage with the available power system, and account for voltage dips and regenerative energy. Don’t assume compatibility.
Tips: Record peak torque, speed, inertia, ambient temperature, and cable length before comparing specifications. Ask for continuous and peak ratings.
Then compare communication interfaces against the machine’s control needs. Pulse or analog commands may suit a simple axis; industrial Ethernet or fieldbus may offer better diagnostics and coordination across multiple axes. Check supported cycle times, network topology, and fault reporting. A protocol name alone does not guarantee smooth integration. Review the controller documentation, then test a representative motion profile with the intended cable length and load. It is easy to overlook heat or network delays during selection, so leave room to revise assumptions before finalizing the design.
Verify EMC and Functional-Safety Needs Against IEC 61800-3 and IEC 61800-5-2
How to Choose the Right Integrated Servo Motor?
Verify EMC and Functional-Safety Needs Against IEC 61800-3 and IEC 61800-5-2
Check the complete drive system, not just the motor’s datasheet. IEC 61800-3 addresses electromagnetic compatibility for adjustable-speed drive systems. Confirm which environment and installation conditions apply to your machine. Cable length, shielding, grounding, and nearby sensors can all affect interference. A tidy cabinet helps, but it does not guarantee a clean test result. Small details matter.
IEC 61800-5-2 covers functional safety for safety-related power drive systems. Identify the required safety functions, such as safe torque off, and check that the drive’s documented capability matches the machine’s risk assessment. STO removes motor torque; it does not necessarily stop a moving load quickly. Verify the required safety level and system design with qualified personnel, then review wiring, configuration, and validation evidence. Standards compliance for one component alone does not establish safety for the whole machine.
Tips: Ask for EMC test conditions and safety documentation before selection. Compare them with your real cable runs, enclosure, and operating environment. If details are missing, pause and clarify them. That extra check may feel slow, but replacing a drive after integration is usually slower. I would still leave room for testing: real layouts can expose assumptions that looked reasonable on paper.
